Triangle Mounting Base for Solar Rails: Function, Tilt Control & Selection

What Is a Triangle Mounting Base in Solar Rail Systems?

A triangle mounting base is a prefabricated structural bracket, typically triangular in side profile, that sits between the foundation or ballast tray and the solar rail. It converts the flat mounting plane into a defined module tilt angle and transfers mechanical loads from the rail system into the support structure. Unlike a simple L-bracket, the triangle shape provides inherent resistance to bending and torsional forces, making it suitable for fixed-tilt racking where the angle does not change after installation.

In a rail-based assembly, the component order is straightforward: foundation or ballast, triangle base, rail, module clamp, and finally the PV module. The base bolts to the foundation on its bottom flange and to the rail on its top or side surface. This interface is not merely a connection; it is the load-carrying transition where forces from wind, snow, and module weight are concentrated before being distributed into the ground or roof structure.

How the Triangle Base Establishes Tilt Angle

The tilt angle is established by the geometry of the triangle base itself. The manufacturer produces bases with a fixed angle, typically in 5° or 10° increments—common values range from 10° to 30° depending on regional sun angles and project specifications. Because the angle is not field-adjustable, selecting the correct base is a design decision made before procurement. Standardized angles allow structural engineers to reuse load calculations and simplify array layouts across large projects.

For ground-mount arrays, the tilt angle affects not only energy yield but also row spacing to avoid inter-row shading. A steeper tilt may improve winter production but requires more land and higher wind load considerations. The triangle base, as the fixed support, must match the project's calculated optimum or acceptable trade-off. Its stiffness also influences how well the rail maintains that angle under load; deformation under wind pressure can slightly alter the effective tilt, so the base and rail connection must be designed as a system.

Load Path and Structural Role

Understanding the load path through a triangle base is essential for verifying structural adequacy. Vertical loads from module and rail weight, plus snow, transfer downward through the vertical leg of the triangle. Lateral wind loads push horizontally on the modules, creating a moment at the base-to-foundation connection. Uplift forces from wind suction try to pull the base upward; this is resisted by anchor bolts or ballast weight. The triangular shape is efficient because it distributes these forces into a wide footprint, reducing stress concentrations.

The connection points matter. The top of the base typically has a slotted or pre-drilled surface to accept rail bolts or channel nuts. The bottom flange has holes for anchor bolts or a welded connection to a pile cap. If the base is too flexible, rail deflection increases, which can amplify module stress and even cause microcracking. Engineers often check the base's moment capacity and stiffness relative to the rail span; a stiffer base may allow longer unsupported rail lengths, reducing the number of foundations required.

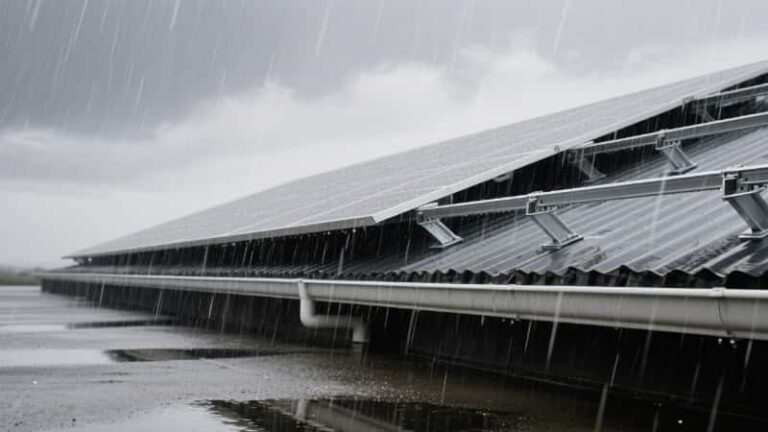

Ground-Mount vs Flat-Roof Applications

The design of a triangle mounting base varies depending on whether it sits on the ground or on a roof. The following table summarizes the main differences.

On ground-mount projects, triangle bases are typically bolted or welded to pile caps, concrete footings, or embedded anchors. The base must tolerate soil moisture and sometimes direct burial corrosion, so protective coatings or material choices are critical. In flat-roof applications, the base is often integrated with a ballast tray or roof anchor system. Here, the base must not puncture the roof membrane, and load distribution is spread over a larger area to avoid point loads. The angle may be the same, but the base's bottom interface is designed for a different foundation system.

Compatibility with Solar Rails and Channels

Compatibility between the triangle base and the solar rail is not always plug-and-play. Rails come in various cross-sections—some with T-slots for channel nuts, others with pre-drilled flanges. The base must have a matching interface: either a flat surface with pre-drilled holes that align with the rail's bolt pattern, or an open slot that accepts a channel nut. In some designs, the base may wrap around the rail to provide additional lateral restraint.

Before specifying a base, engineers should verify: the rail profile dimensions, bolt hole spacing, the type of fastener (hex bolt vs channel nut), and whether the connection provides sufficient moment capacity to prevent rotation. Galvanic corrosion between dissimilar metals is another concern; if the base is steel and the rail is aluminum, an isolating material may be required. On-site adjustability is limited; some bases allow minor shimming to correct foundation unevenness, but this should not be relied upon for large tolerances.

• Rail cross-section type and dimensions
• Fastener compatibility and hole pattern
• Moment capacity of the connection

Material and Corrosion Protection

Triangle mounting bases are commonly produced from aluminum alloy or hot-dip galvanized steel. Aluminum offers light weight and natural corrosion resistance; steel provides higher strength at lower cost but requires galvanizing or other coating to prevent rust. The choice often depends on project location and the overall racking material. For example, an aluminum rail system may pair with an aluminum base to avoid galvanic issues, while a steel base may be used with steel rails.

Corrosion protection is not uniform across all environments. Coastal sites with salt spray demand thicker anodizing or galvanizing layers, or alternative coatings. Industrial areas may have acidic pollutants. High UV exposure degrades some polymer coatings. The specification should state the corrosion class according to ISO 9223 or similar standard, and the base coating must be verified to meet that class. Because bases are often out of sight after installation, failures can go undetected until structural integrity is compromised.

Specification Checklist for Engineers and Procurement

Before finalizing a triangle mounting base specification, consider these points:

• Foundation type and connection method (anchor bolts, welding, ballast)
• Required tilt angle and allowable tolerance
• Maximum design loads (vertical, lateral, uplift) from wind and snow calculations
• Rail profile compatibility and fastener interface
• Corrosion environment and required coating system
• Manufacturer documentation: drawings, load tables, material certifications
• Site-specific installation constraints (e.g., roof membrane protection, soil conditions)
