Solar Carport Mounting Systems for EPC & C&I Projects

Engineering-Grade Solar Carport Mounting Structures

WANHOS manufactures complete structural systems for commercial and industrial solar carports. Our portfolio includes four standard design architectures—W-Type, Π-Type, Y-Type, and C-Steel—offering flexibility for different spans, foundation conditions, and load profiles. Each system can be configured for portrait or landscape module orientation and supports waterproofing requirements.

Start Your Project Inquiry

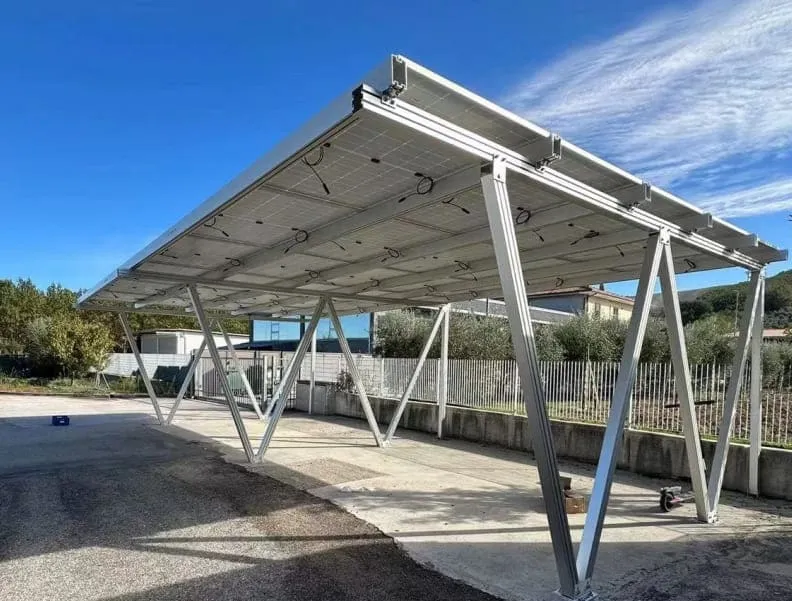

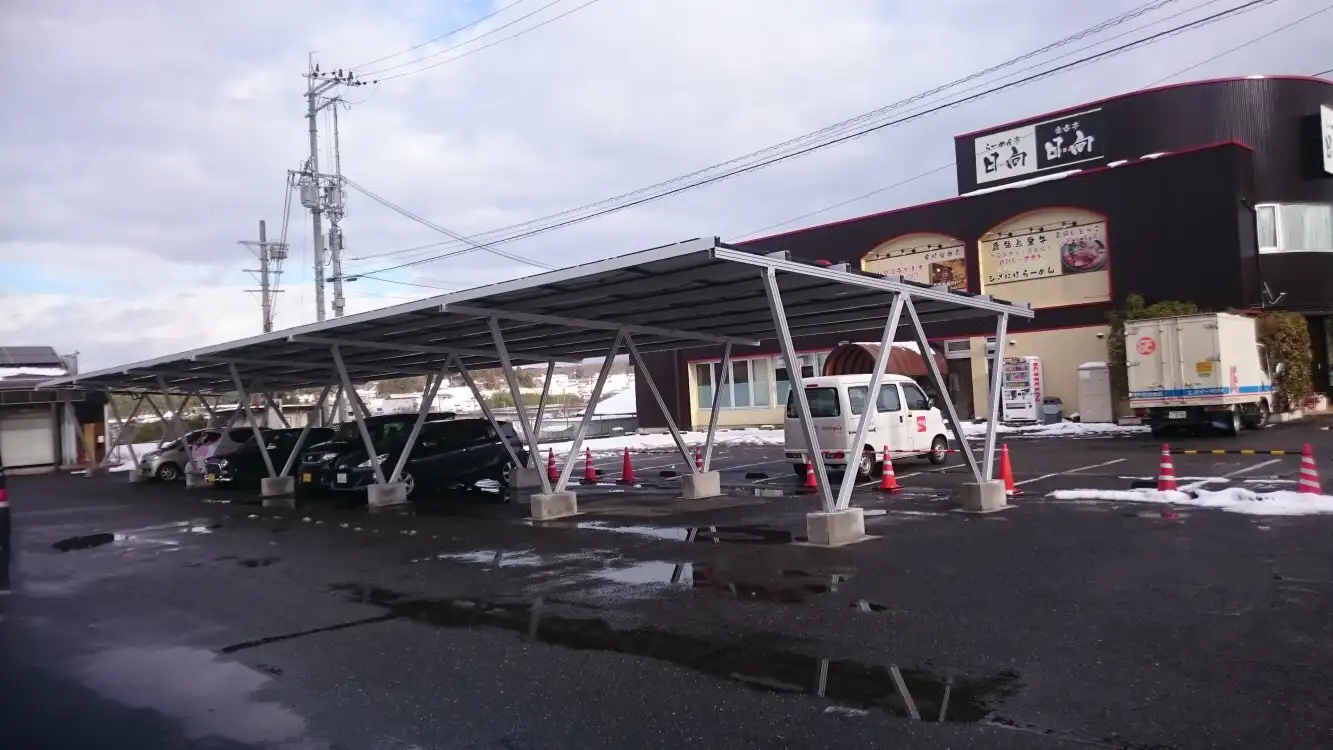

W-Type Solar Carport

Cost-effective and stable, the W-Type provides a balance of strength and material efficiency. Ideal for general commercial projects with standard span requirements and moderate load conditions.

Π-Type (Pi) Carport

Designed for wide, open spans, the Π-Type allows easy vehicle maneuvering in large commercial and industrial parking lots. Its structure minimizes column interference.

Y-Type Carport

The Y-Type supports organized single- and double-row parking layouts. It is well suited for projects integrating EV charging infrastructure.

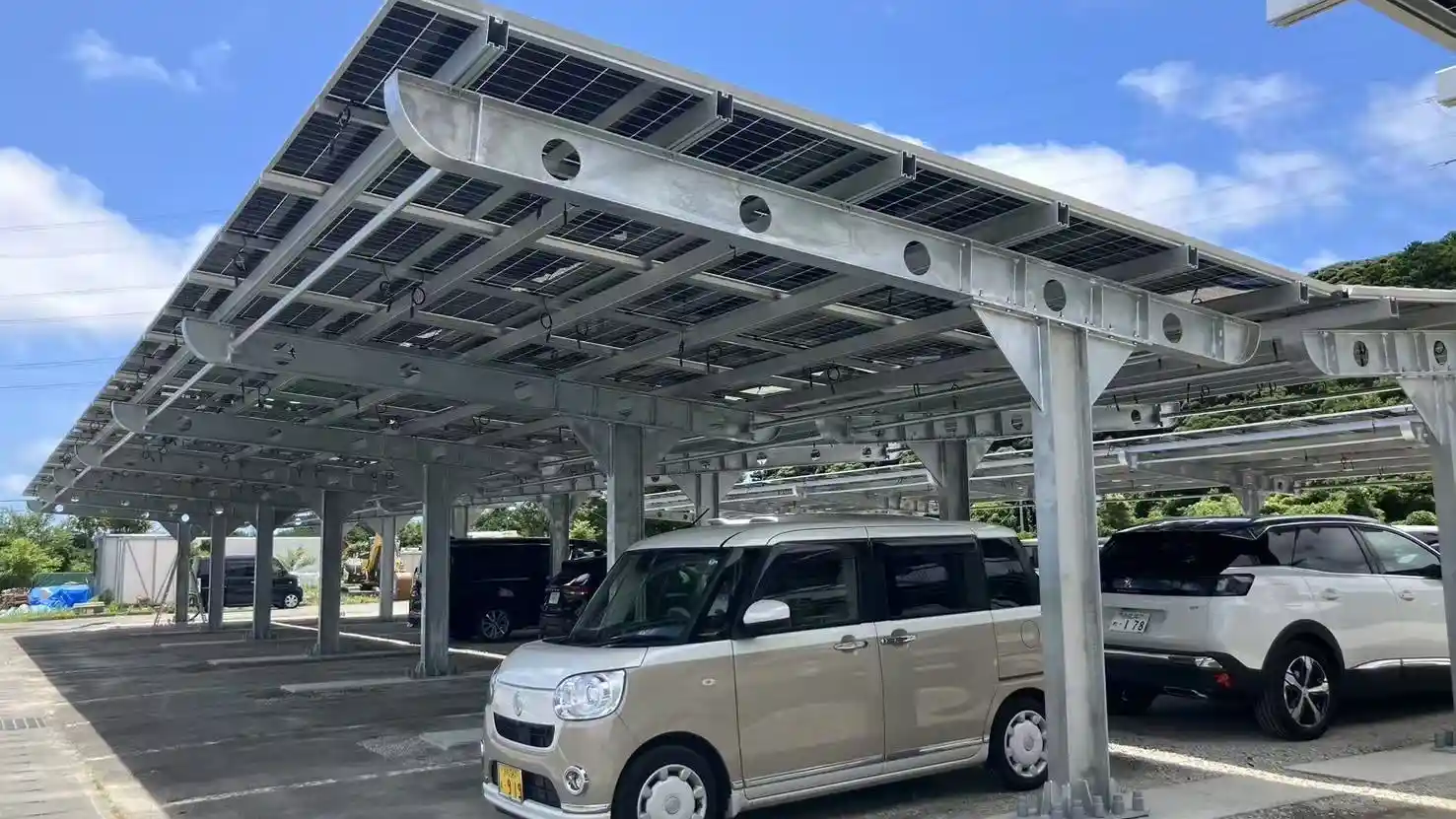

C-Steel Carport

For high-capacity or utility-scale projects where steel is preferred, the C-Steel system offers enhanced load-bearing performance and can be engineered for larger spans.

Waterproof Design

Integrated drainage channels and sealing details prevent water leakage, protecting vehicles and equipment beneath the carport.

Flexible Foundation Options

The mounting system is compatible with precast concrete blocks, ground screws, and embedded piers. WANHOS engineers help select the right foundation based on soil reports and project logistics.

Universal PV Module Compatibility

Support structures accommodate common module frame sizes and allow portrait or landscape orientation, giving procurement flexibility.

10-Year Warranty

All WANHOS carport mounting structures come with a 10-year product warranty, backed by engineering documentation and responsive technical support.

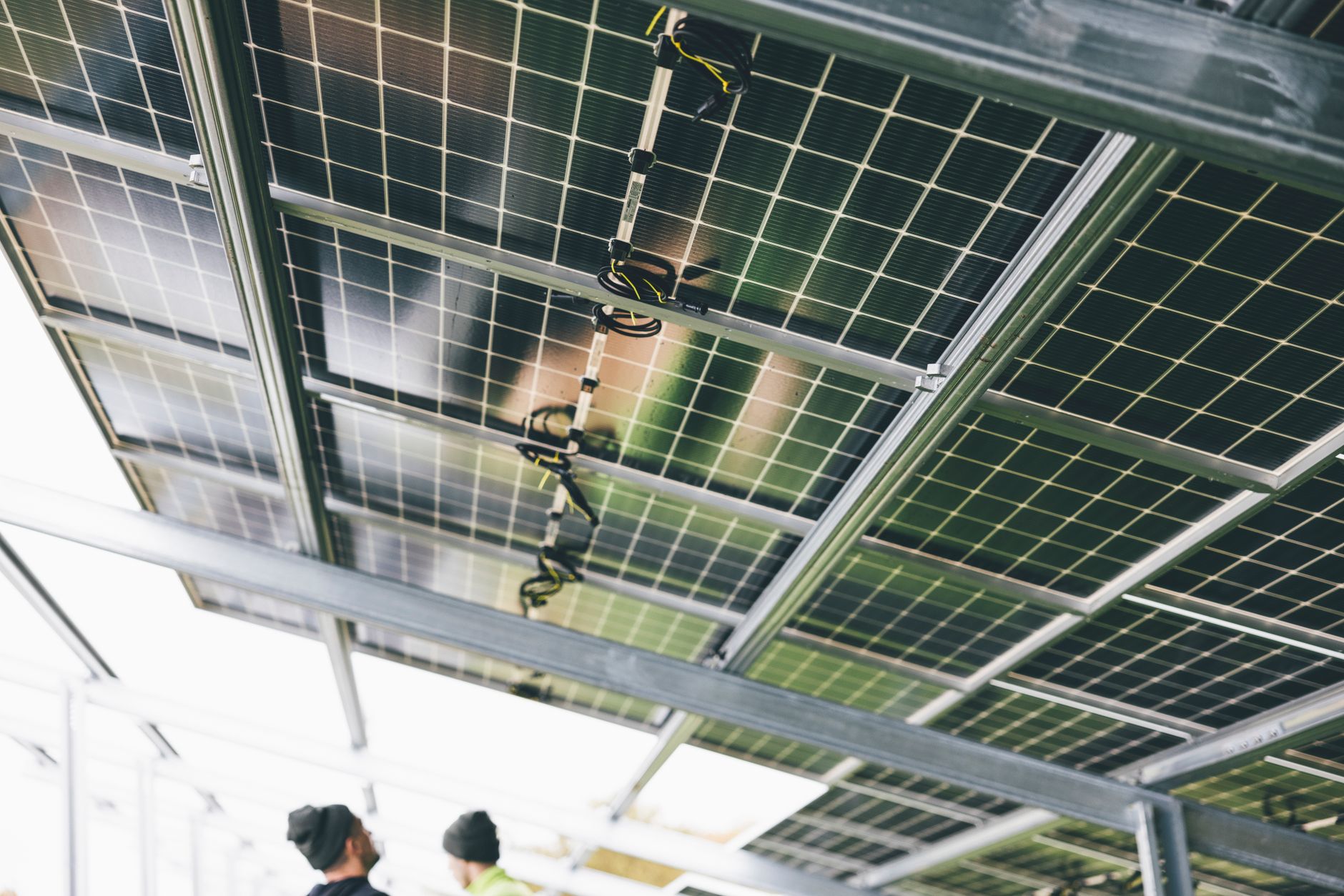

Engineering & Design Capabilities

WANHOS provides the engineering inputs EPCs need to move from concept to construction.

Our technical team delivers structural calculations, foundation recommendations, and detailed drawings for each project. The design approach prioritizes site adaptability and long-term performance.

Waterproofing: Integrated drainage and sealing details minimize leak risk.
Load profiles: Systems are designed to withstand wind loads up to 55 m/s and snow loads up to 1.4 kN/m².
Foundations: Agnostic to precast blocks, ground screws, or embedded piers; selection based on soil conditions.
Module orientation: Supports portrait and landscape configurations.

Technical Specifications & Project Documentation

Key system parameters for initial project screening.

Download the full WANHOS solar carport system datasheet for detailed dimensions, material data, and installation notes.

Wind load: up to 55 m/s
Snow load: up to 1.4 kN/m²
Module orientation: Portrait / Landscape
Foundation options: Precast blocks / Ground screws / Embedded piers

Frequently Asked Questions

What foundation types are compatible with WANHOS carport systems?

Our systems work with precast concrete blocks, ground screws, and embedded piers. The appropriate foundation is determined by your soil report and site logistics.

Can the carport accommodate different solar panel sizes?

Yes, the mounting structure supports common module frame dimensions in both portrait and landscape orientation. Provide your panel specifications for a compatibility check.

Does WANHOS support EV charger integration on carports?

Yes, the Y-Type system is particularly suited for EV charging integration, and other systems can be adapted with cable management and mounting points.

What warranty is provided with the carport mounting system?

WANHOS offers a 10-year product warranty on carport mounting structures, backed by engineering documentation and technical support.

How do I get a project-specific quote?

Send your project details—number of parking spaces, location, and any special requirements—through the inquiry form. Our team will provide a structural recommendation and quotation.
