Product Information
| Product Type | Solar End Clamp |
|---|---|
| Main Material | Aluminum |
| Model | Project-specific |
| Customization | Configuration, dimensions, materials and supplied components can be reviewed against application requirements |
| Finish Options | Available on request |
| Document Support | Product data, coordinated bill of materials, drawings, packing information, installation guidance |
| Compatibility | Confirmed project-by-project based on mounting profile and module frame details |
End Clamp Role and Array Compatibility
Solar end clamps secure the first and last module on each rail course, providing outer edge support that maintains panel alignment and system integrity. They work alongside mid clamps, which anchor adjacent panels between rows. Because end clamps are exposed to higher wind and physical stress at the array perimeter, they are engineered for dependable retention. Compatibility is confirmed per project by reviewing the mounting rail profile and PV module frame dimensions. This ensures the clamp fits correctly and avoids installation delays or panel retention issues.
Materials and Project-Specific Configuration
The end clamp is manufactured from aluminum, selected for its corrosion resistance and suitability for long-term outdoor exposure. Buyers can request specific surface finishes, supplied components, or dimensional adjustments to match engineering requirements. Configuration is not limited to a single catalog item; WANHOS reviews each inquiry against the application, allowing adaptation to different module frame thicknesses and rail profiles. This project-driven approach supports both new installations and upgrades to existing PV systems.
Typical Project Applications
Aluminum solar end clamps are used across commercial, industrial and utility-scale photovoltaic installations. Their role at the array perimeter is identical regardless of system type, making them suitable for rooftop and ground-mounted projects. The adaptable design supports a wide range of solar panel types and sizes, providing a flexible component solution for new builds or retrofits. Buyers typically specify end clamps when completing module row assembly or replacing components in existing racking infrastructure.
- Commercial rooftop PV arrays
- Industrial solar installations
- Utility-scale ground-mounted systems
- New installations and system upgrades
Procurement and Project Documentation
To obtain an accurate quotation and confirm compatibility, buyers should provide the related mounting profile or component dimensions, module frame details, required quantity, material or finish requirements, and project location. Based on order scope, WANHOS can supply product data, a coordinated bill of materials, drawings, packing information, and installation guidance. This documentation supports engineering review, project approval, and procurement planning for professional solar projects.
Frequently Asked Questions
Can the solar end clamp be customized for a specific module frame or rail profile?
Yes. Configuration, dimensions, materials and supplied components can be reviewed against the application and engineering requirements. Share your project inputs so compatibility can be confirmed before ordering.
What information is needed to quote and confirm an end clamp?
Provide the related mounting profile or component dimensions, module frame details, required quantity, material or finish, and project location.
Are finishes other than natural aluminum available?
Finish options are available on request. Specific finishes are confirmed against order scope and project requirements.
What documents can be supplied for project approval?
Depending on the order scope, WANHOS can provide product data, a coordinated bill of materials, drawings, packing information and installation guidance.
What is the difference between an end clamp and a mid clamp?

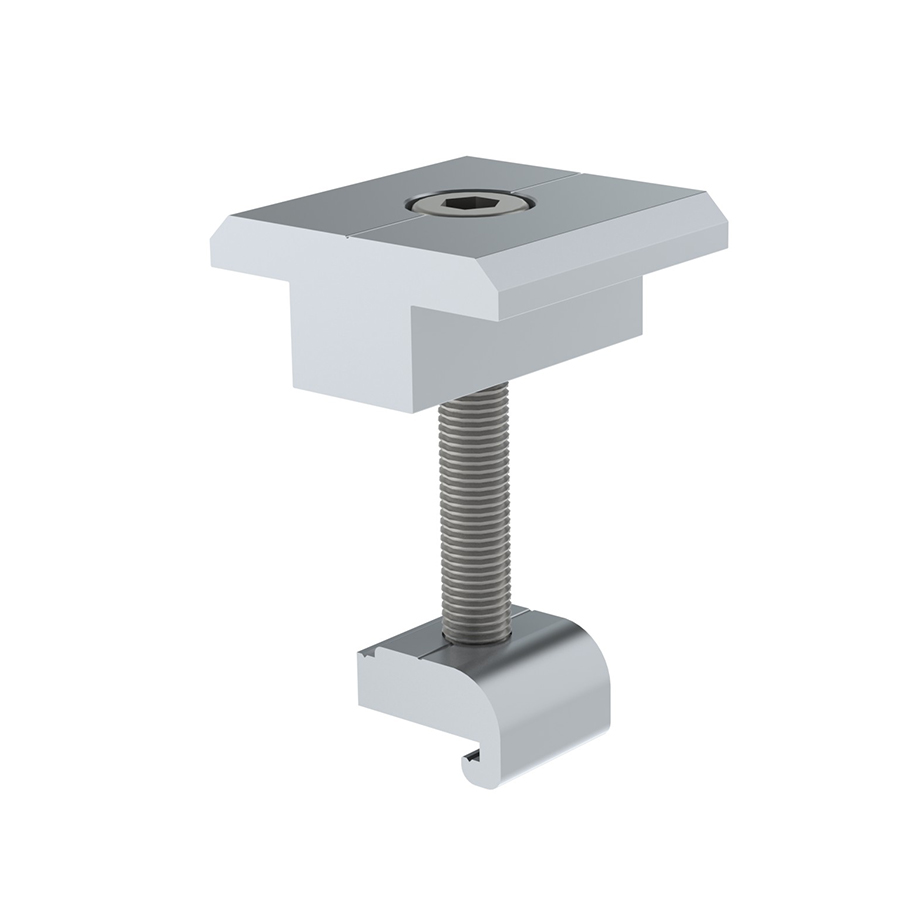

Mid clamps secure adjacent panels at shared rails between modules, while end clamps anchor the first and last module along each rail course, providing outer edge support.
